Lanboon diamond abrasive beltsare widely used on portable , It’s best for lighter duty applications, such as blending and finishing contours, and it may be used on thermal sprays, carbides, composites, chilled iron, non-ferrous metals, glass and other hard-to-grind materials.
Built Tough, Finishes Fine
We adhere the diamond abrasive on Flexible Diamond 6456J using a metal bond. Compared to resin or vitrified bonds, metal bonds tend to be the most tough. The backing is the most flexible backing type of our Flexible Diamond products, which helps the abrasive respond well to surface imperfections and contours.
• Ease-of-use, can be in different sizes and fixed to different belt sanders for a wide variety of applications.
Popular sizes are 330x10mm, 520x20mm, 533x30mm, but can be supplied in any required dimensions.
Popular grits 60# 120# 200# 400# (other grits can be made as per request)
Available in open or closed loop.
Available surface patterns: square, hexagon and dot (other patterns can be made as per request)

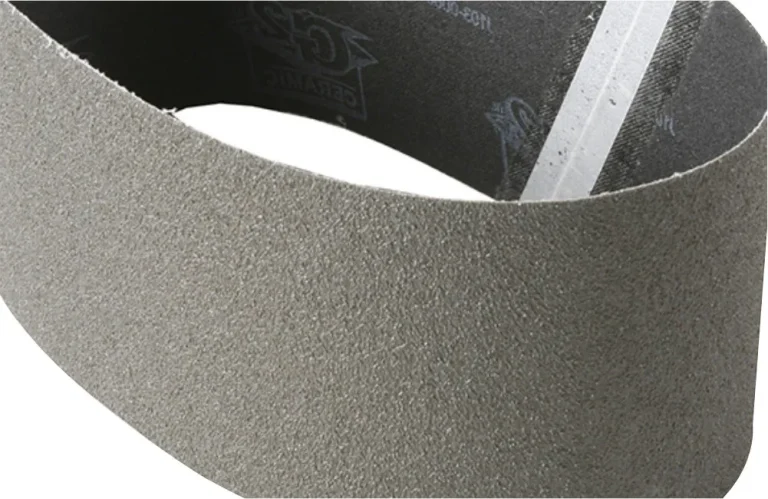

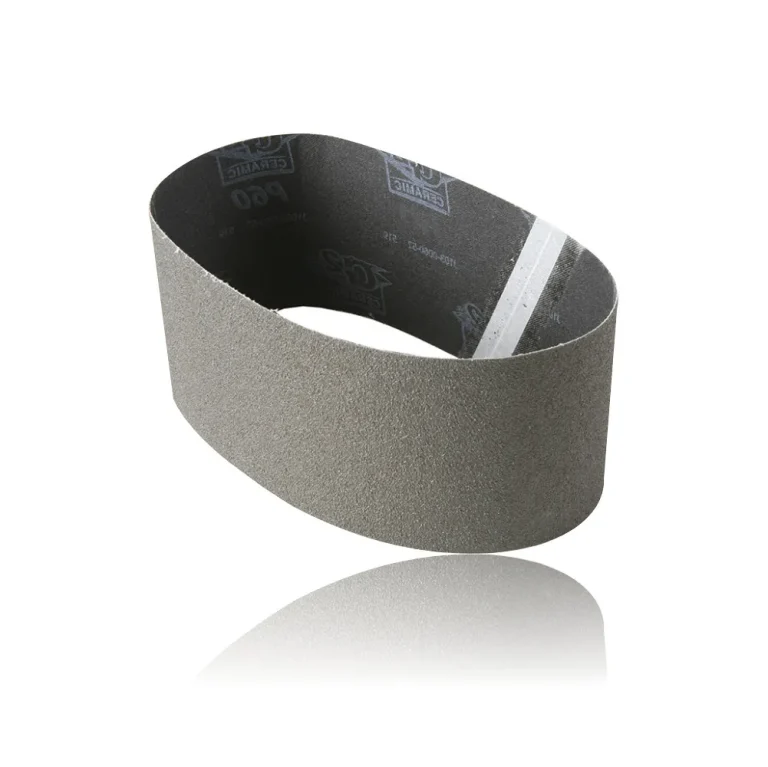

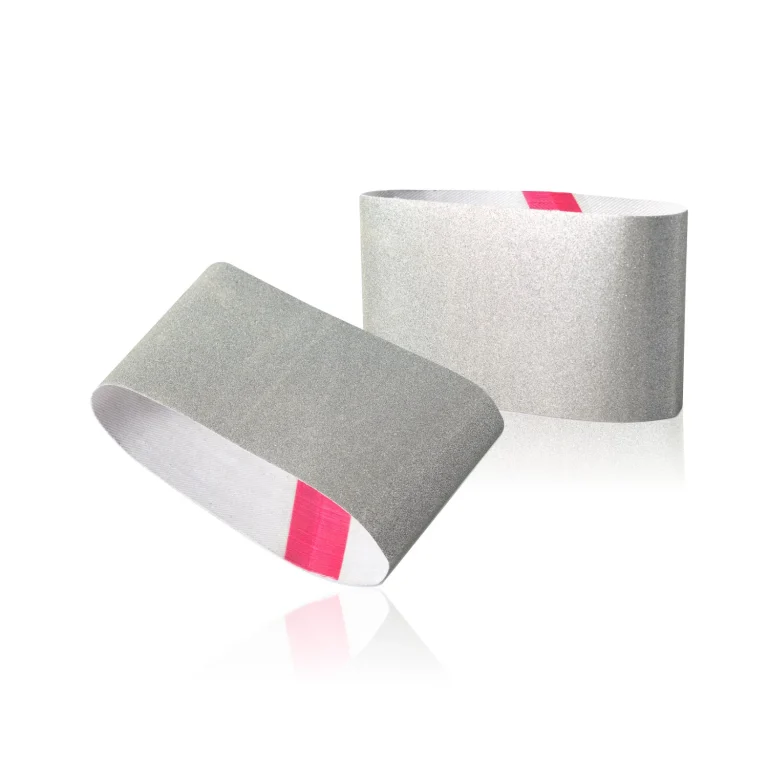

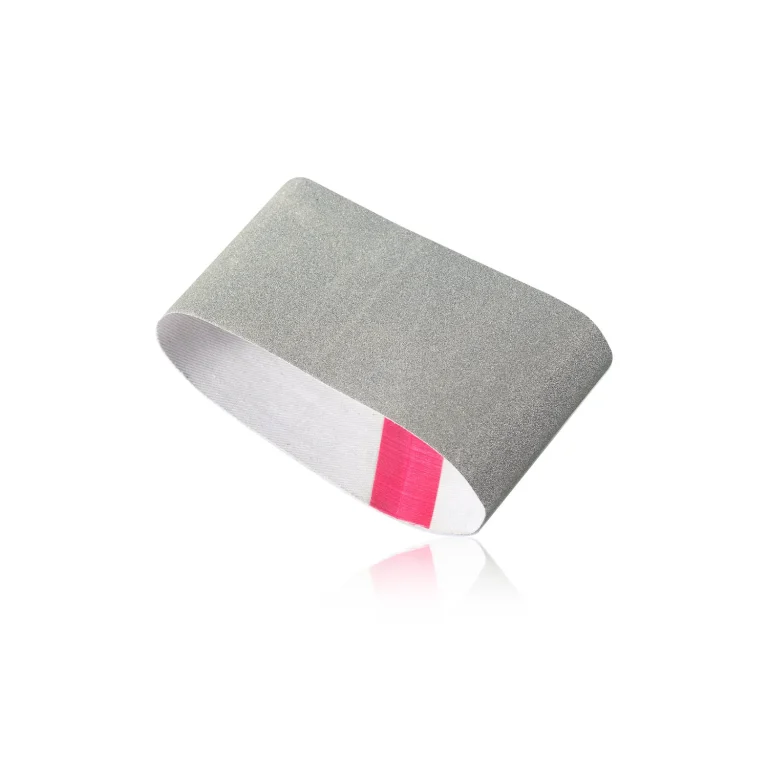

Product Name: Flexible Diamond Belts
Item No.: DIA-BE-W5*150-P60
Brand: Lanboon
Working surface: Electroplated flexible diamond sheet
Advantages of working surface: • High cut rates because of 100% diamond exposure.
• Long lasting because each individual diamond is held in place by electroplating technology.
• As soft as traditional abrasive sandpaper but lasts much longer.
• Precise diamond placement for best swarf removal and heat dissipation.
• Can be used both wet and dry.
Features of the product: • Very flexible so as to respond well to contours, be able to grind and polish inside and outside radius and other hard to reach areas.
• Open dot pattern with arranged diamonds reduces loading, consistent space provides better channeling for swarf.
• The diamond doesn’t break down like conventional sandpaper belts which ensures smooth polishing as well as long lasting.
• Quality backing adds accuracy and strength to the belt, dovetail joint is less likely to break.
• Ease-of-use, can be in different sizes and fixed to different belt sanders for a wide variety of applications.
Popular sizes: 330x10mm, 520x20mm, 533x30mm, etc.
Other sizes: Can be custom made
Popular grits: 60# 120# 200# 400#
Available grits: 30# 60# 120# 200# 400# 600# 1000# 2000# 3000#
Usage: Wet and dry
Applied machine: Portable air belt sanders
Applications: Grinding and polishing of straight, bevel and round stone edge, inside and outside radius of masonry products, countertop sink cutouts.
